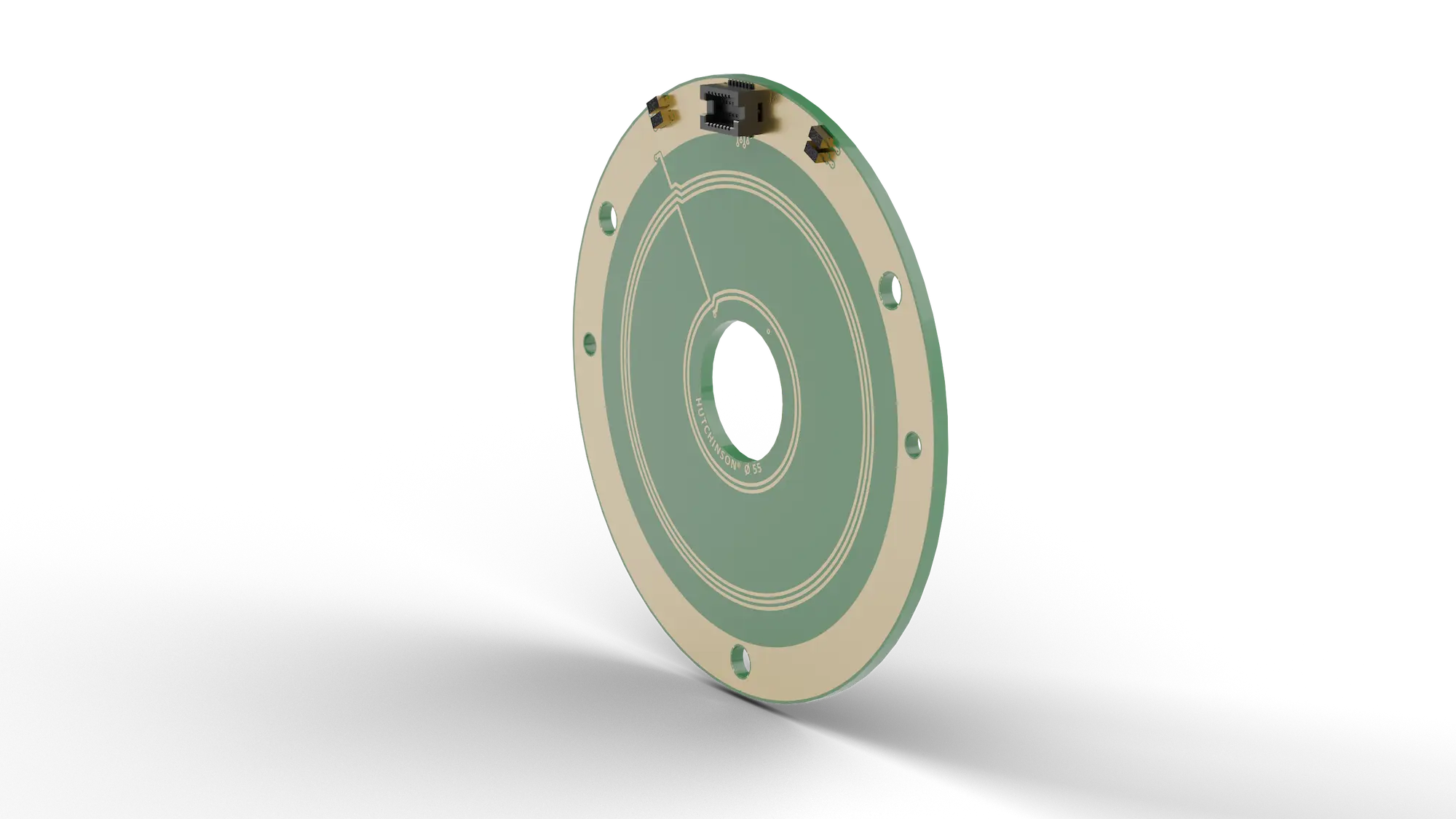

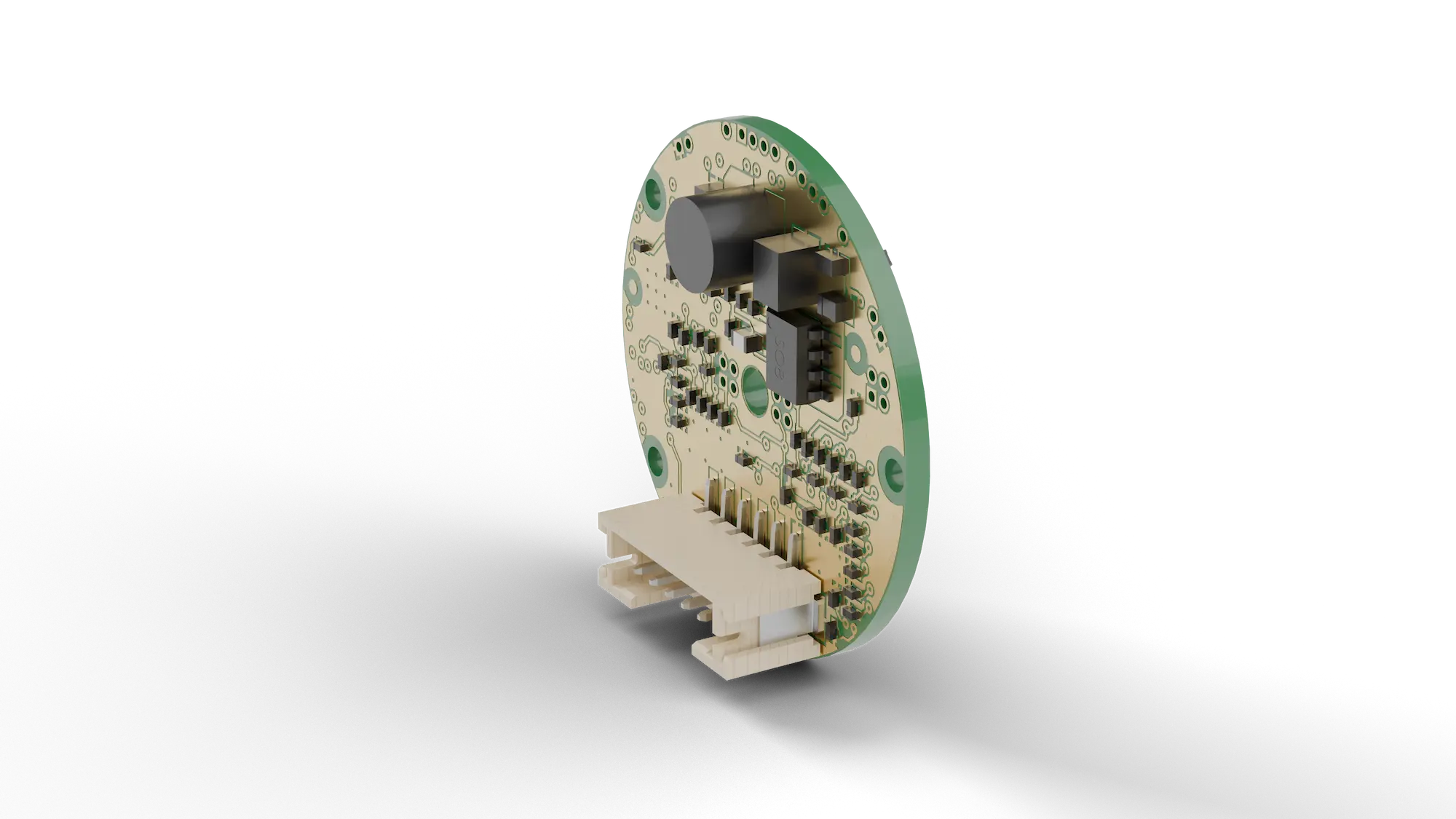

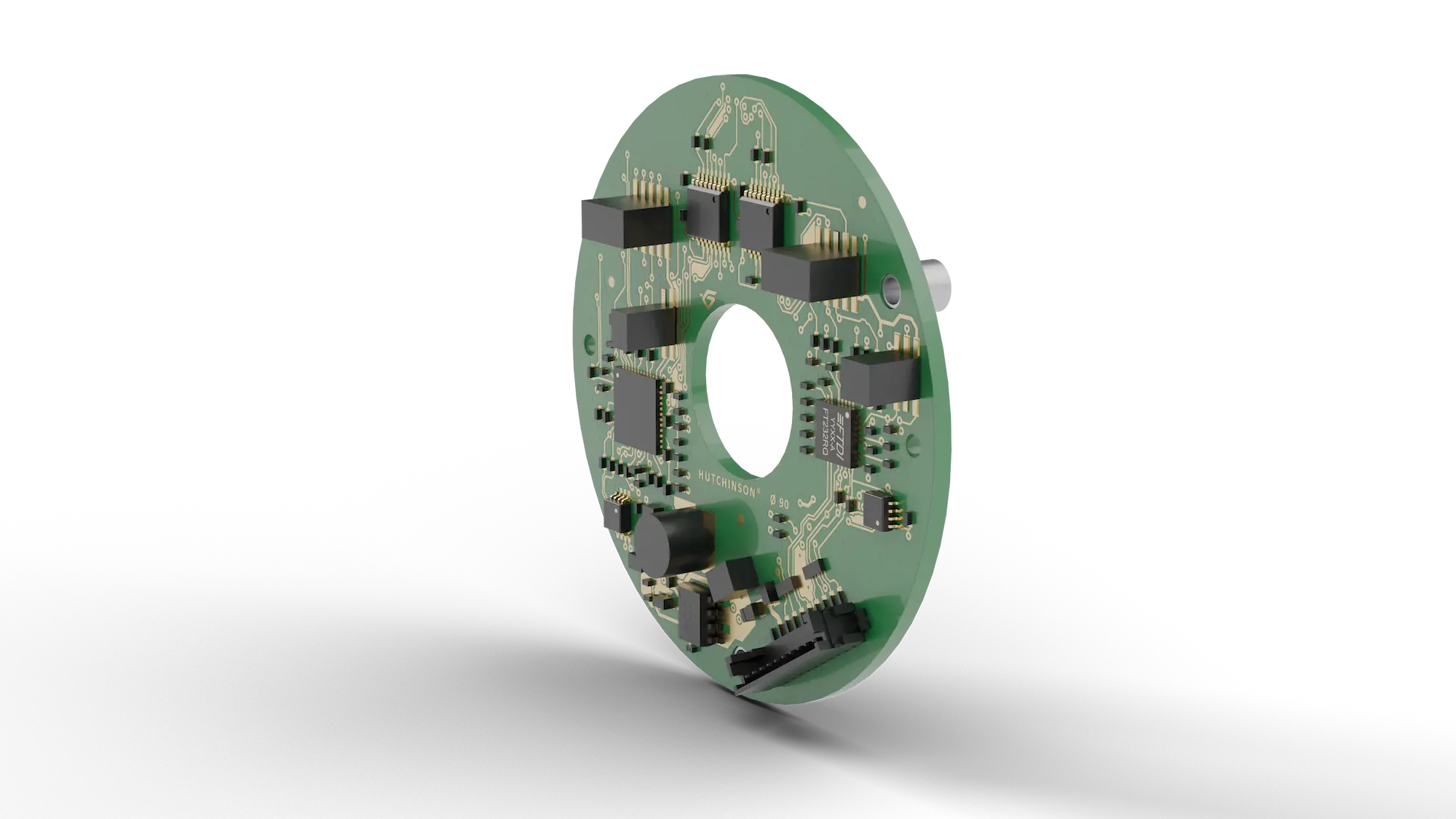

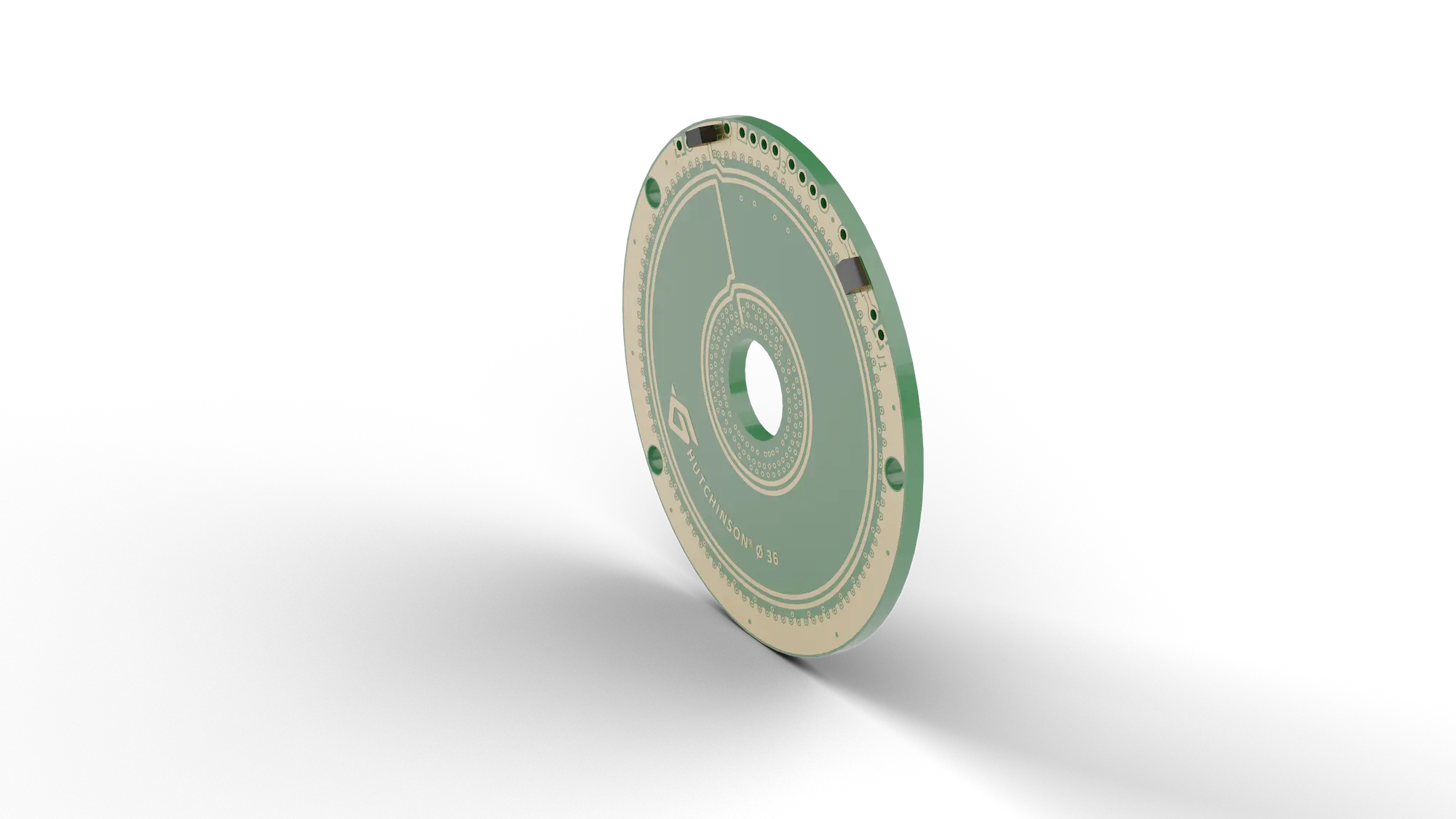

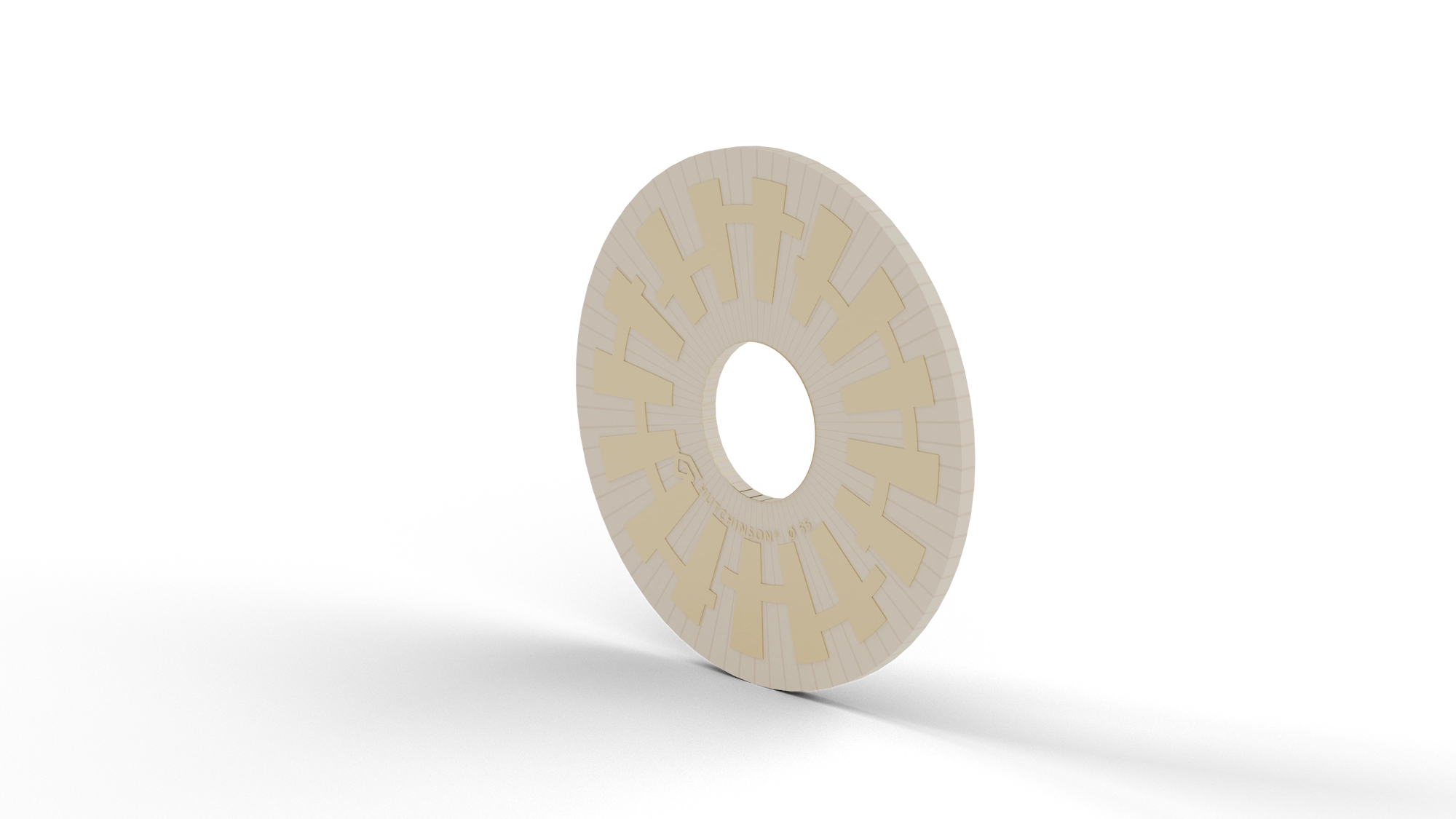

Absolute Encoder Dymeo®
Dymeo® inductive technology uses eddy currents to accurately measure angular position and instantaneous speed without mechanical contact. This design reduces wear and ensures stable measurement even in the presence of stray magnetic fields.
Robust and easy to integrate, it is suited to the demanding environments of the aerospace, defense, rail and medical sectors.
Absolute sensor with position information available immediately at power-up ("True Power-On")
High resolution, ultra-high-speed performance
Reliable operation in environments exposed to vibration, high temperatures and electromagnetic interference (EMI)
Applications
- Positioning systems
- Elevators & lifting equipment
- Robotics & automation
Caractéristiques
- Contactless inductive technology
- Measuring range from 0 to 360°
- Resolution up to 24 bits
- Accuracy of the mechanical angular position: ± 0.02°
- Rotation speed up to 100 000 rpm
- Insensitive to low frequency <150 kHz stray fields
- Power consumption <0,8 Watt (30 mA/24 VDC)
- Temperature range from -40 to +150°C
Forces
- Custom development
- High precision and signal resolution
- Flexible output signals: analog (sin/cos), incremental (ABZ or UVW), and digital (SSI / BiSS)
Advanced precision
Reliability
Compactness
Customization and adaptabiliy
Robust design
