Juboflex® type S - Elastic coupling
- Flexible Couplings
Juboflex® type S - Elastic coupling
Couplings strengthened, flexibility, strong resistance to means couples.

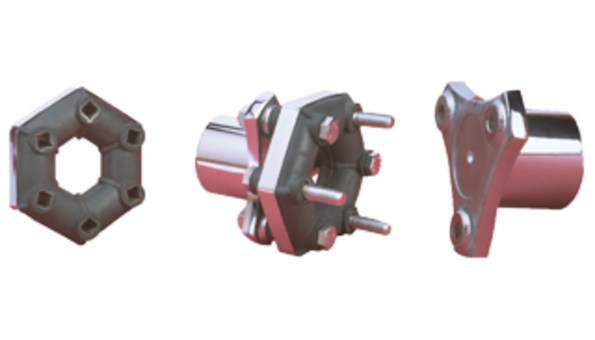

- Flexible element:
- Precompressed natural rubber
- Bonded metal reinforcing mountings
- Precompression band (to be removed after installation)
- Flange:
- Die-cast steel (except 632267 which is cast-iron)
Main Benefits
JUBOFLEX "S" has a greater load capacity than the standard JUBOFLEX.
Highly effective attenuation of cyclic irregularities and peaks in the torque.
Due to the precompression, the JUBOFLEX "S" has very good resistance to torsional peaks.
Tolerance to large misalignment: avoids the need for precise alignment of the machines to be coupled.
key features
Caractéristiques principales
La conception de l’accouplement JUBOFLEX® “S” lui confère les propriétés suivantes :
- Démontage radial sans déplacement des machines accouplées ;
- Pré-compression de l’élément élastique lors du montage, qui limite le travail en traction du caoutchouc
Applications
Groupes électrogènes
Machines-outils
Moteurs
Moto-pompe
