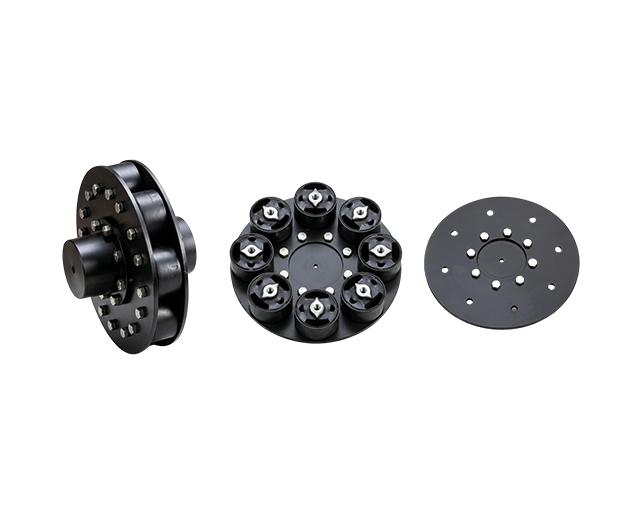

Axoflex® - Elastic coupling

Couplings pads for very high torque.

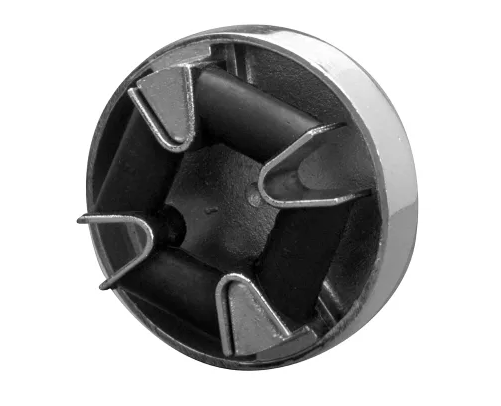

• Flexible element comprising a variable number of flexible bushes,depending on the torque to be transmitted.
• Inner with tapped or smooth holes (normal mounting or on flywheel).
• Precompressed natural rubber bonded to inner and to outer the half-cylinders.
• Half-cylinders bonded to the rubber.
• Outer housing ensuring precompression of rubber by exerting pressure on the half-cylinders.
• Steel disks:
• Flange to which the inner studs are attached (normal mounting).
• Disk to which the studs are attached (flywheel mounting).
• Die cast steel hubs:
• The two hubs are identical. They may be bolted to disks or depending on the mounting used.
