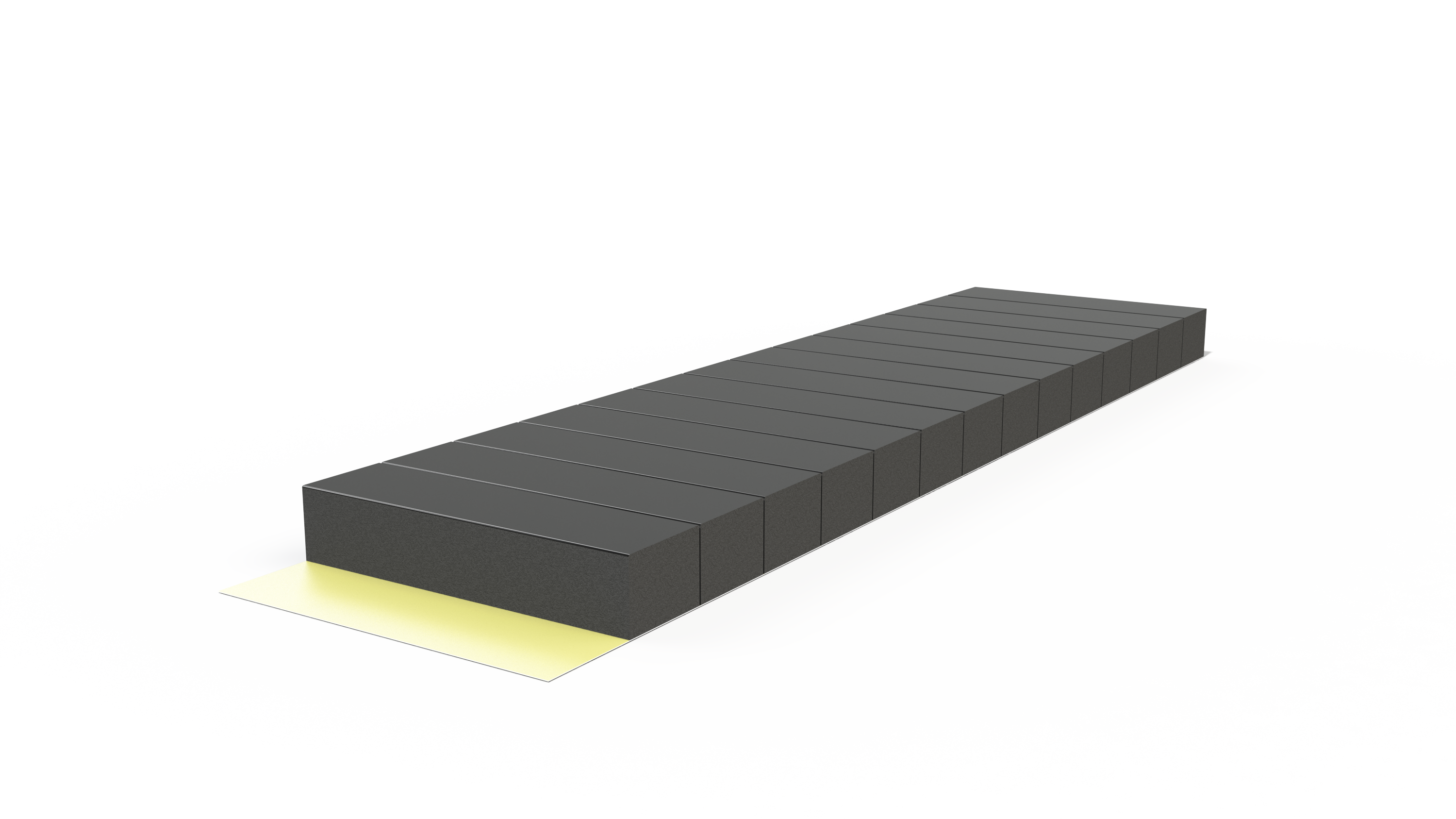

Compact rubber sheets

Compact rubber sheets provide sealing, cushioning and vibration damping in automotive systems, thereby contributing to comfort and durability. Hutchinson formulates and processes high-performance elastomers in-house, supplying semi-finished sheets tailored to specific applications. Bespoke sheets are available in various shapes, thicknesses and dimensions, with optional adhesive backing. They offer excellent resistance to tearing, abrasion, UV exposure and mechanical stress, whilst combining robust materials with flexible processes to ensure seamless integration.

Main Benefits

Noise and vibration damping
Chemical and temperature resistance
Fully customisable

Request a quote

Key features

Applications

Roofing tiles
Water tanks (for drinking water)
Pharmaceuticals
Industrial, robotic, marine and medical equipment
Chemicals and food processing
Triplex (lamination with aluminium foil)

Characteristics

Wide range of materials: EPDM, CR (chloroprene), NBR (nitrile), NR (natural rubber), IIR (butyl)
Thickness from 0.3 to 14 mm
Width from 30 to 1950 mm
Length depending on thickness
Fire-resistant materials
Addition of textile inserts (polyamide, polyester)
Options: talc and/or adhesives
Multi-material lamination: rubber + PTFE, rubber + rubber
Sheets can be supplied as semi-finished products in the form of pre-cut strips or rolls, vulcanised or unvulcanised
Sheets from 3 mm thick can be ground to as close as possible to the desired nominal thickness
Various types of surface finish (textured or smooth)

Strengths

Factories certified to ISO 9001, 14001 and IATF 16949
70 years’ experience in rubber manufacturing
Material development and customization of bespoke sheets
Die-cutting to any shape, tailored to the requirements of technical specifications
Complete control over the manufacturing process: from compounding to the finished product
