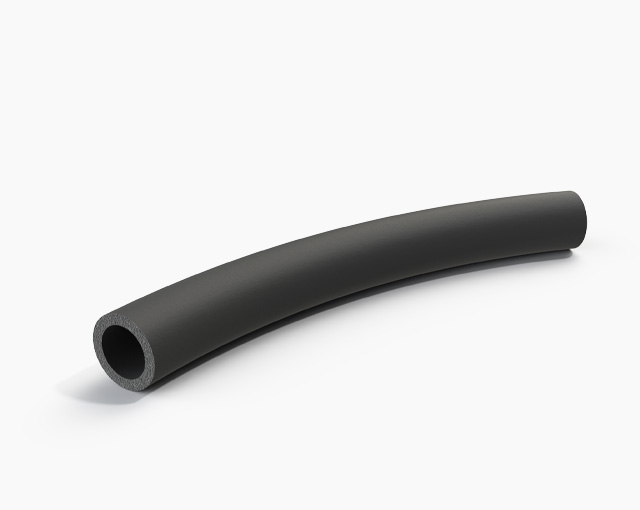

Cellular Rubber Sleeves
Cellular rubber sleeves provide thermal and acoustic insulation, as well as mechanical protection for your applications. Hutchinson formulates and manufactures elastomers in-house that are resistant to extreme temperatures, wear and fire. Available in a range of shapes and sizes, they combine flexibility, durability and reliable performance for demanding environments.
Acoustic and thermal insulation
Mechanical protection
Lightweight and flexible
- Durability
Applications
- Motor
- Tank
- Fuel lines
- Heating, ventilation, and air conditioning (HVAC) systems
- Mechanical protection
- Fridges
Characteristics
- High-resilience, closed-cell elastomeric foams made from EPDM/NBR, PVC and CM
- Customisable
- Self-extinguishing products compliant with FMVSS 302
- Temperature resistance up to 150 °C, including fire resistance Density from 150 kg/m³ to 350 kg/m³
- Tear strength from 0.5 to 7 kN/m
- Very low thermal conductivity with a lambda value between 0.043 and 0.062 W/m°K
- Dimensions: internal diameter from 5 to 35 mm, wall thickness from 3 to 8 mm. Other dimensions possible following a feasibility study in accordance with customer specifications
- Specific inkjet marking
Strengths
- Customised design and design to specifications (cutting, shapes, etc.)
- A fully integrated process to ensure the highest possible quality
- Specialised inkjet marking
- ISO 845:2006
- NF EN ISO 21656; NF EN ISO 21654
