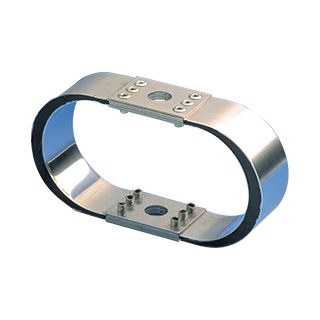

“X” Type Flexible mounts - Elastomer mount

Marine shockproof holder, resilient, radially mounted.

Steel mounting with excellent shock absorption capacity, highly resistant to fatigue. It is made of a stainless steel and epoxy resin sandwich which limits the amplification.

Main Benefits

Intrinsically stable under impact, that is to say that they allow the mass to return to its initial position; the system does not retain any plastic deformation or residual buckling when the stresses of the impact have disappeared.
The suspended mass can therefore undergo several successive shocks without risk. However, the stability of the assembly must be checked beforehand in relation to the relative positions of the supports and the centre of gravity of the suspended mass.
The PAULSTRA marine supports also offer excellent vibratory and acoustic performance.

Download the brochure

key features

Caractéristiques principales

Un support marine doit assurer les fonctions suivantes :

maintien de la masse suspendue en l'absence de choc avec une capacité d'isolation vibratoire et/ou acoustique ;
en cas de chocs : limitation de l'effort et/ou du déplacement à des valeurs acceptables ;
après chocs : retour de la masse suspendue à sa position initiale.
