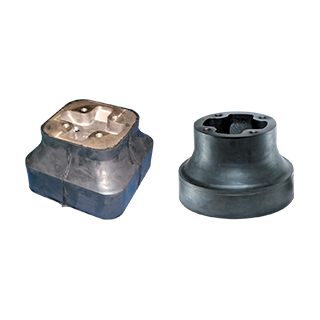

VIB HD 56 - Medium deflection mount

A complete range of high deflection omnidirectional mounts. They are made of two cast iron inserts, a threaded steel plate holding the fixing interfaces is added to one end.

The elastomer is a specially developed natural rubber to meet the navy requirements (Other materials can be delivered on request).

Main Benefits

These mounts will provide both a very high level of vibration attenuation and a high shock capacity to reduce the transmitted acceleration. It’s structural resistance correspond to a continuous acceleration of 10 g at the maximum load.
The range is made of several references with a load range ranging from 1125 daN up to 7000 daN per mount.
These mounts meet both the European and North American shock standards.
The metalwork are treated against corrosion.

Download the brochure

key features

Caractéristiques principales

Un support marine doit assurer les fonctions suivantes :

Maintien de la masse suspendue en l'absence de choc avec une capacité d'isolation vibratoire et/ou acoustique ;
En cas de chocs : limitation de l'effort et/ou du déplacement à des valeurs acceptables ;
Après chocs : retour de la masse suspendue à sa position initiale.
