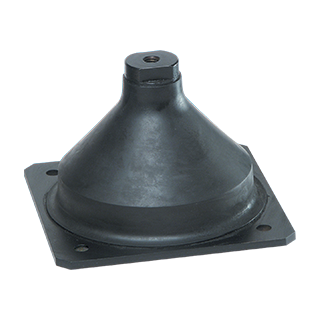

VIB HD 45 - Medium deflection mount
Range of omnidirectional high deflection shock mounts made with a square base plate and a threaded core on the upper side.
The elastomer, in natural rubber, is developed especially for navy applications (other materials on demand).
These mounts provide both high level of vibration isolation and shock protection. Its high structural strength corresponds to a continuous acceleration of 10 g under maximum load.
The range includes 17 different mounts covering a wide load range from 15 kg up to 1670 kg per mount.
This mount meets the latest US and European shock standards in use in the naval forces across the globe.
The metalworks are protected against corrosion (ie. : salt spray).
key features
Caractéristiques principales
Un support marine doit assurer les fonctions suivantes :
- Maintien de la masse suspendue en l'absence de choc avec une capacité d'isolation vibratoire et/ou acoustique ;
- En cas de chocs : limitation de l'effort et/ou du déplacement à des valeurs acceptables ;
- Après chocs : retour de la masse suspendue à sa position initiale.
Resources & documentation
Applications
Armoires électriques
Transport
Matériels de contrôle
Matériels embarqués
Matériels labos
