Slimline Sealing Washers

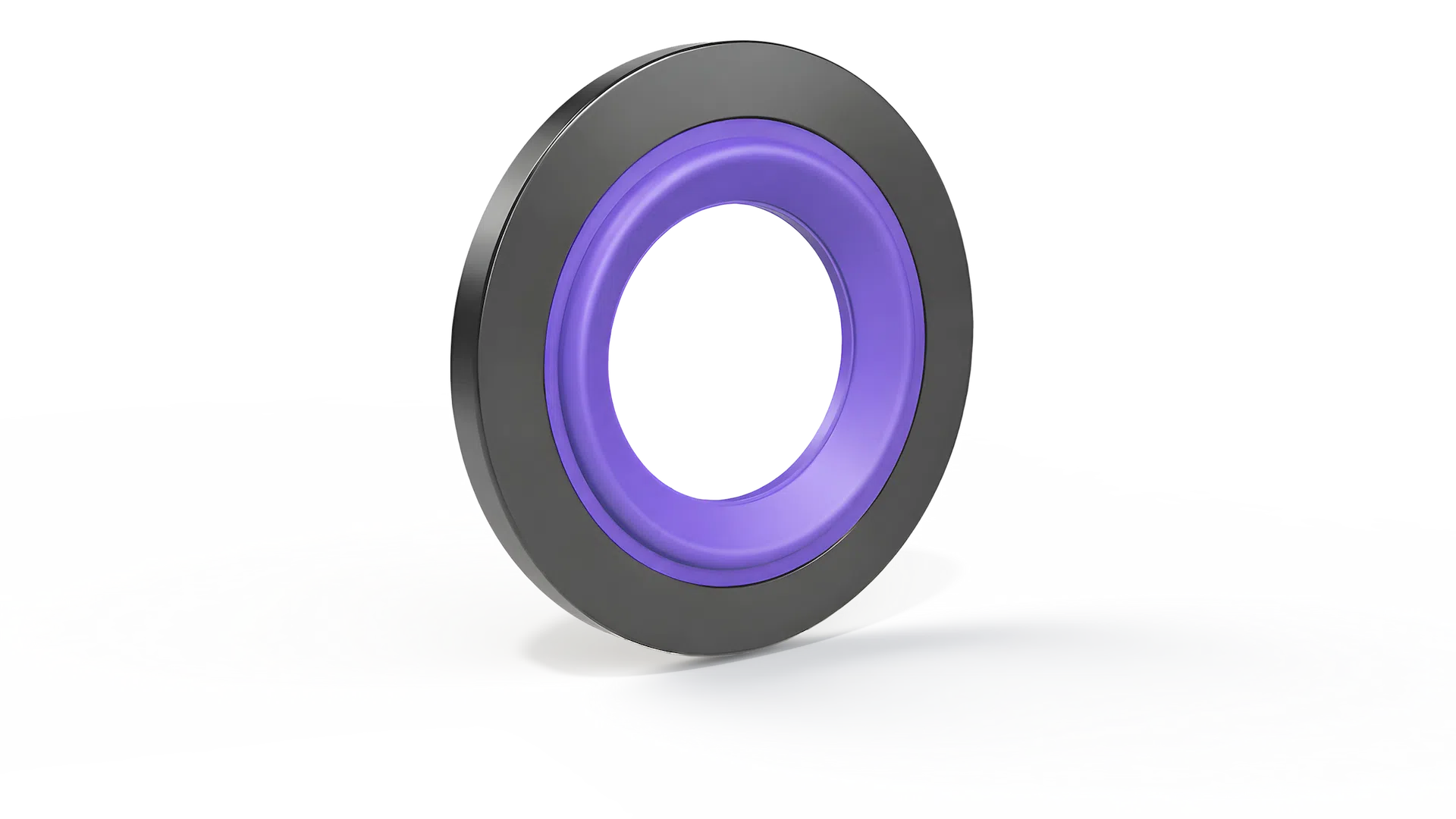

The Slimline sealing washer (SLSW) delivers reliable axial sealing performance in automotive HVAC connectors, replacing traditional radially compressed O-rings. It offers a high-performance technical alternative for demanding applications. This ring consists of a carbon steel insert (cold-rolled and work-hardened strip), protected by a Zn-Ni anti-corrosion coating. Inside, a trapezoidal-section elastomer ring is bonded and vulcanized, ensuring excellent mechanical and chemical resistance. The violet EPDM elastomer compound used is specially formulated to provide optimal resistance to R1234yf refrigerant, meeting the requirements of modern air-conditioning systems.

Main Benefits

Tailor-made solutions: component design and elastomer compound formulations
No machining of grooves required: savings on the total cost of the fitting
Effortless assembly and installation
No risk of damaging the seal during installation
Very low permeability and improved sealing performance
Ring identification via the colour of the elastomer compounds

Request a quote

Applications

Air conditioning (HVAC) fittings
R134a and R1234yf refrigerant circuits
Industrial equipment, heating and air conditioning
Construction vehicles and agricultural machinery (off-road)
Heavy vehicles

Characteristics

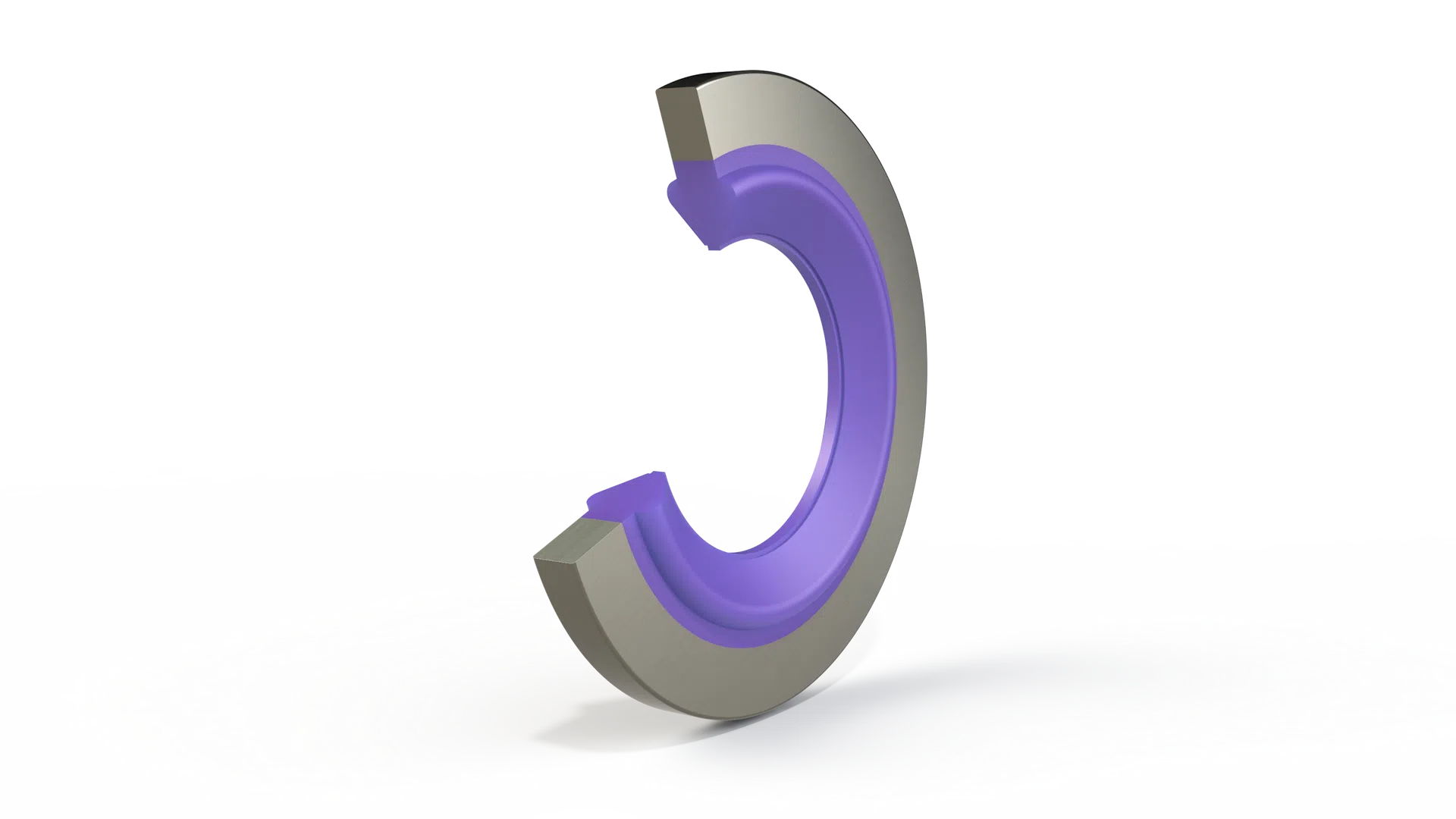

Bi-material seal: metal washer and specially shaped vulcanised rubber lip
Metal insert made of steel or aluminium, with anti-corrosion treatment
Standard elastomer compounds in EPDM and HNBR
Purple EPDM with optimised chemical resistance to R1234yf
Other compounds available on request
Compatible with dimensional standards for air-conditioning fittings
Other insert materials available on request: aluminium, stainless steel
Assembly without risk of damaging the seal
Standard dimensions for generic fittings: 3/8‘, 1/2’, 5/8‘ and 3/4’ pipes
Thicknesses of 2.03 mm and 2.13 mm; internal/external dimensions from 8.13 × 16.00 to 17.16 × 25.26 mm
