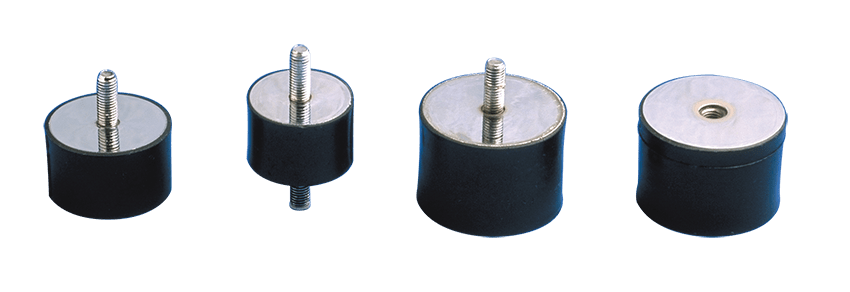

Radiaflex® and Radiaflex® Inox-Plot and cylindrical support in elastomer
Antivibration cylindrical support.Easy assembly, all types of fasteners.
- Metalwork: mild steel, plated.
- Natural rubber, bonded, cylindrically shaped.
- 5 styles of Welded fixings:
- single side threaded stud
- single side threaded hole,
- double threaded stud,
- double threaded hole,
- combination fixing
European thread standards are not always consistent with French thread standards so Paulstra has created the Radiaflex® Europe range based on those standards. The end stop version is now available with a threaded hole in addition to the threaded stud.
Simple to fix.
Simple and economical.
Extensive range:
15 stud diameters.
Several heights for each diameter.
6 methods of fixing.
key features
Characteristics
The design of the RADIAFLEX® mount gives the following basic characteristics:
- Radial elasticity greater than axial elasticity.
- The rubber works in:
- compression (axial)
- shear (radial)
- compression
- shear according to the fixing method.
Resources & documentation
Applications
Electrical enclosures
Elevators/Lifts
Air conditioning - AHU
Compressors
Containers and packaging
Screeners
Slabs and floating floors
Electronic equipments
Generators
Machine tools
Testing equipment
Laboratory equipment
Ceilings
Pumps
Overhead cranes
Transformers
Hoppers
Pipes
Air cooler
Fan
