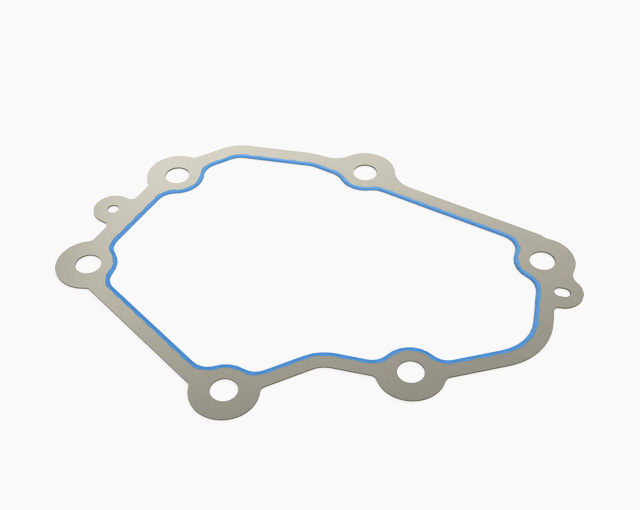

Plate seals

Bonded plate seals are bi-material components: an elastomer overmoulded onto a rigid metal or thermoplastic reinforcement, which facilitates assembly. The rigid backing acts as a spacer for the fixing screws and ensures a reliable static seal throughout the component’s service life.
Plate seals are used in industrial applications where the sealing and clamping functions need to be separated.
The designs are optimised to facilitate assembly, whether manual or automated. The use of specific elastomers enables the seals to withstand extreme pressures and temperatures, ensuring high performance in harsh environments without compromising on weight.

Main Benefits

Reliable sealing throughout the product’s service life
Sealing of housings that are deformed under stress or porous
Rigid reinforcement acting as a spacer: no shims required to prevent crushing
Easy assembly, suitable for automation
Thin elastomer thickness possible, down to 0.6 mm

Request a quote

Applications

Static sealing on housings with geometric defects
Sealing of casings and enclosures
Housings exhibiting stress-induced deformation or porosity
Industrial air conditioning, robotics
Motors and transmissions: flange seals, interface seals, DT seals

Caractéristiques

Elastomers: EPDM, ACM, AEM, HNBR, FKM, FFKM, VMQ, FVMQ
Specific insert materials and reinforcements: steel, stainless steel, titanium, aluminium, magnesium
Elastomer layer thickness up to 0.6 mm
Temperature up to 300 °C
Resistance to operating pressures of up to 3,000 PSI / 206 bar and burst pressures of up to 9,000 PSI / 620 bar
Rigid metal or high-performance thermoplastic substrates
