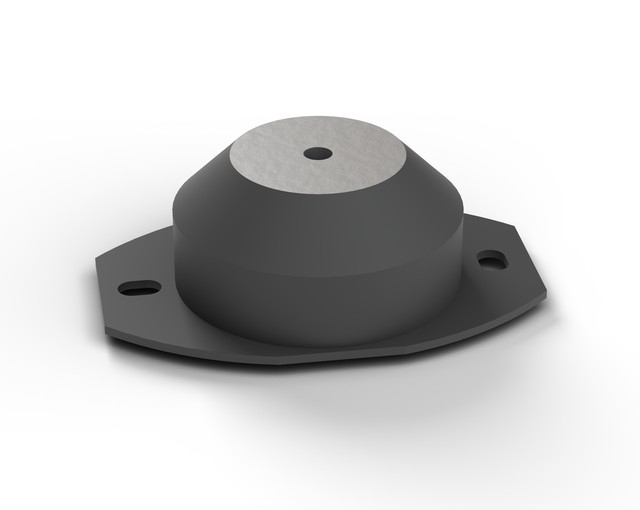

Paulstradyn® & Paulstradyn® Inox-Anti-vibration mount
High-performance support Anti-vibration and corrosion.
Antivibration isolation for static equipment:
- Rotating machinery such as fans
- Air-conditioning
- Pumps
- Compressors
- Generator sets
- Pipeworks
- Ceilings
- Transformers
- Electrical enclosures.
Better than 90% isolation at 1.500 rpm (25 Hz)
Constant height over wide load range
Stabilised characteristics during Service Life
Simple to fit
500 hours protection against salt spray
Design
key features
Characteristics
- Axial Clean Frequency: 7 Hz under nominal load
- Own frequency in radial: 3 to 5,5 Hz
- Maximum axial travel: 12 mm
- Maximum radial travel: 10 mm
- The anti-vibration feet can be used at temperatures ranging from -20°C to +70°C
- Conventional mounting of the anti-vibratory support with fixed screw-in structure
Applications
Electrical enclosures
Elevators/Lifts
Shredders
Air conditioning - AHU
Compressors
Containers and packaging
Screeners
Slabs and floating floors
Electronic equipments
Generators
Machine tools
Testing equipment
Laboratory equipment
Motors
Ceilings
Pumps
Overhead cranes
Presses and shears
Transformers
Hoppers
Pipes
Air cooler
Fan
Heat pump
